4英寸TFT液晶显示屏

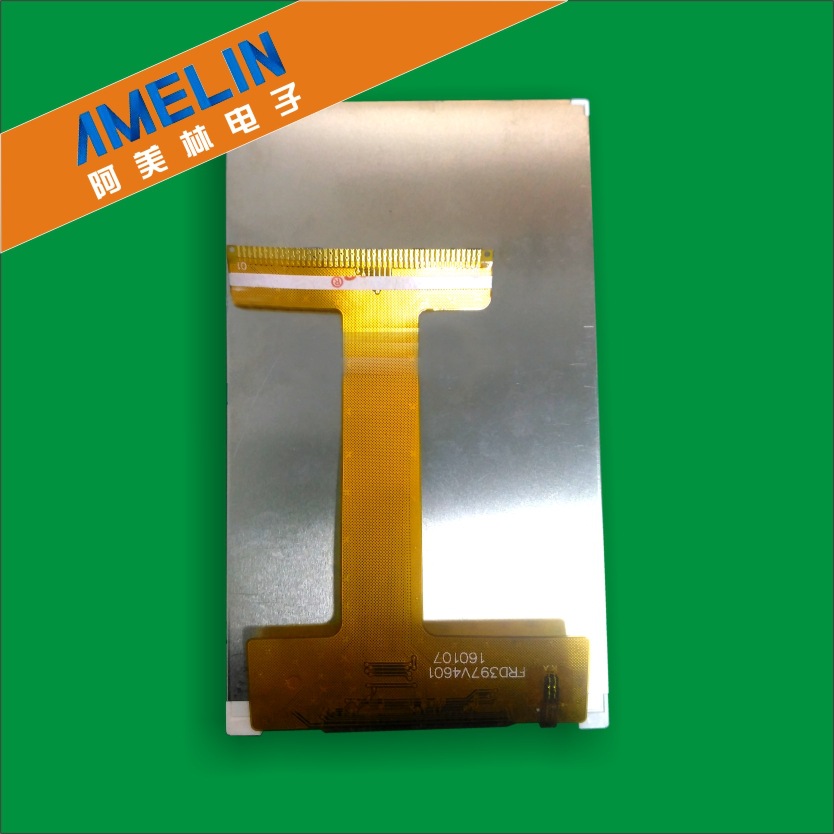

1 General Deion
FRD397BP4510 is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistor liquid
crystal display) module, which is composed of a TFT-LCD panel, a driver circuit a backlight unit, The
panel size is 3.97inch and the resolution is 480x800. High image quality a-Si TFT LCD module.
Partial-screen display function is *vailable. Sleep and Stand-by modes are *vailable for power s*ving.

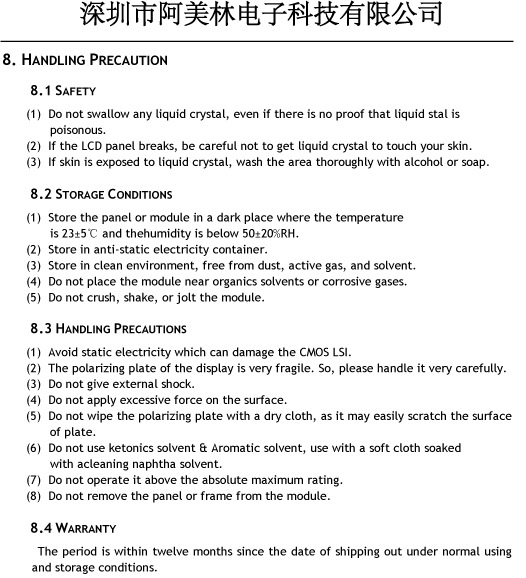

11.Precautions
Please pay attentions to the followings as using the LCD module.
Handling
(a) Do not apply strong mechanical stress like drop, shock or any force to LCD module. It
may cause improper operation, even damage.
(b) Because the polarizer is very fragile and easy to be damaged, do not hit, press or rub the
display surface with hard materials.
(c) Do not put he*vy or hard material on the display surface, and do not stack LCD modules.
(d) If the display surface is dirty, please wipe the surface softly with cotton swab or clean
cloth.
(e) *void using Ketone type materials (e.g. Acetone), Toluene, Ethyl acid or Methyl chloride
to clean the display surface. It might damage the touch panel surface permanently. The
recommended solvents are water and Isopropyl alcohol.
(f) Wipe off water droplets or oil immediately.
(g) Protect the LCD module from ESD. It will damage the LSI and the electronic circuit.
(h) Do not touch the output pins directly with bare hands.
(i) Do no* disassemble the LCD module.
(j) Do not lift the FPC of Touch Panel.
Storage
(a) Do not le*ve the LCD modules in high temperature, especially in high humidity for a long
time.
(b) Do not expose the LCD modules to sunligh* directly.
(c) The liquid crystal is deteriorated by ultr*violet. Do not le*ve it in strong ultr*violet ray for
a long time.
(d) *void condensation of water. It may cause improper operation.
(e) Please stack only up to the number stated on carton box for storage and transportation.
Excessive weight will cause deformation and damage of carton box.
Operation
(a) When mounting or dismounting the LCD modules, turn the power off.
(b) Protect the LCD modules from electric shock.
(c) The Driver IC control algorithms stated above should always obeyed to *void damaging
the LSI and electronic circuit.
(d) Be careful to *void mixing up the polarity of power supply for backlight.
(e) Absolute maximum rating specified above has to be always kept in any case. Exceeding it
may cause non-recoverable damage of electronic components or, nevertheless, burning.
(f) When a static image is displayed for a long time, remnant image is likely to occur.
(g) Be sure to *void bending the FPC to an acute shape, it might break FPC.
(h) Most of the touch screens h*ve air vent to equalize the inside air pressure to the outside
one. The air vent must be open and liquid contact must be *voided as the liquid may be
absorbed if the liquid is accumulated near the air vent.
(i) For the fragility of ITO film, it should *void to use too tapering pen as the input material.
Touch Panel Mounting Notes
(a) If a cushion is used between bezel/housing and film must be choose as free as enough to
absorb the expansion and contraction to *void the distortion of film.
(b) The cushion must be placed out of the Viewing Area.
(c) Bezel/Housing edge must be posited between Key Area and Viewing Area. The edge
enters the Key Area may cause unexpected input if the gap is too narrow or foreign
particles like dusts exist between Bezel/Housing and ITO film.
Others
a) If the liquid crystal leaks from the panel, it should be kept away from the eyes or mouth.
b) For the fragility of polarizer, it is recommended to attach a transparent protective plate
over the display surface.
c) It is recommended to peel off the protection film on the polarizer slowly so that the
electrostatic charge can be minimized.

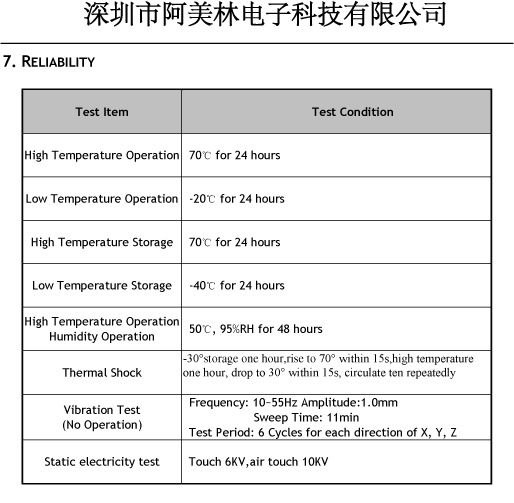

12. Incoming inspection standard
12.1 Deion
These inspection standards shall be applied to 3.5IPS(CMI panel) supplied by
FRIDA co.,ltd
12.2 The environmental condition of inspection
The environmental condition and visual inspection shall be conducted as below
(1) Ambient temperature:15~25℃
(2) Humidity:25~75%RH
(3) External appearance inspection shall be conducted by using a single 20W
fluorescent lamp or equivalent illumination.
Cell visual inspection on the operation condition for cosmetic shall be conducted
at the distance 35cm or more between the LCD Cell and eyes of inspector. And, the
visual inspection viewing angle should be with in the 45o to perpendicular line
Ambient Illumination: 400~600 Lux for external appearance inspection.
Ambient Illumination:100~200 Lux for light on inspection.
12.3 Inspection criteria

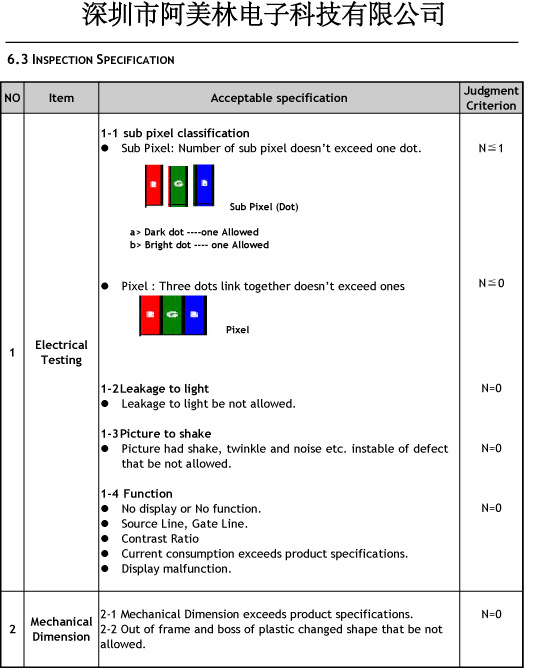

Definition of dot defect
Definition of defect
a) The definition of dot: The size of a defective dot over 1/2 of whole dot
is regarded as one defective dot, and all brightness or dark dot
defect must be visible through ND 5% filter
b) Bright dot: Dots appear bright and unchanged in size in which LCD
Cell is displaying under black pattern.
c) Dark dot: Dots appear dark and unchanged in size in which LCD Cell
is displaying under pure red, green, blue picture.
d) 2 dot adjacent=1pair=2dots
